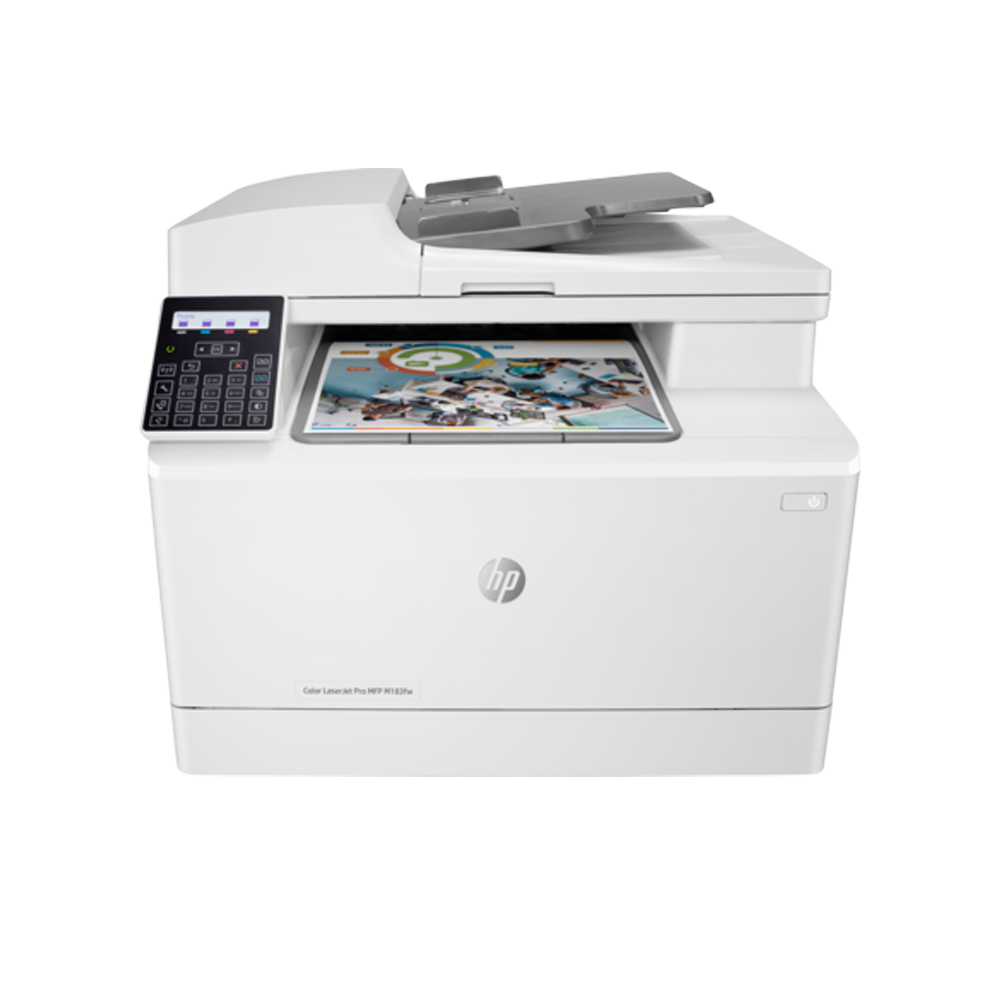

Máy in HP Laser màu Đa chức năng MFP M183fw (7KW56A) (in A4 wifi, scan, photo, fax)

Functions

• Print, copy, scan, fax

Multitasking supported

• Yes

Printing specifications

Print speed black:

Normal: Up to 16 ppm
(Measured using ISO/IEC 24734, excludes first set of test documents. For more information see hp.com/products1/ISO/MMDPP/index.html. Exact speed varies depending on the system configuration, software application, driver, and document complexity.)

Print speed color:

Normal:Up to 4 ppm
(Measured using ISO/IEC 24734, excludes first set of test documents. For more information see hp.com/products1/ISO/MMDPP/index.html. Exact speed varies depending on the system configuration, software application, driver, and document complexity.)

First page out (ready)

Black: As fast as 16 sec
Color: As fast as 27.5 sec
(Exact speed varies depending on the system configuration, software application, driver and document complexity.)

Duty cycle (monthly, A4)

Up to 20,000 pages
(Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups.)

Recommended monthly page volume

250 to 950
(HP recommends that the number of pages per month of imaged output be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.)

Print technology

• Laser

Print quality black (best)

• Up to 600 x 600 dpi quality (2400 dpi effective output with ImageREt 2400)

Print quality color (best)

• Up to 600 x 600 dpi quality (2400 dpi effective output with ImageREt 2400)

Print Resolution Technologies

HP ImageREt 2400

Print languages

• PCLm/PCLmS

Display

• 7.6 cm (3) touchscreen CGD (Colour Graphics Display)

Processor speed

• 600 MHz

Automatic paper sensor

• No

Replacement cartridges

• HP 130A Black LaserJet Toner Cartridge (~1300 yield) CF350A
• HP 130A Cyan LaserJet Toner Cartridge (~1000 yield) CF351A
• HP 130A Yellow LaserJet Toner Cartridge (~1000 yield) CF352A
• HP 130A Magenta LaserJet Toner Cartridge (~1000 yield) CF353A
• HP 126A LaserJet Imaging Drum CE314A

HP ePrint capability

• Yes

Mobile printing capability

HP ePrint
Apple AirPrint™
Mopria™-certified
Wireless Direct Printing
(May require a firmware upgrade to be compatible, download at hp.com/go/support)

Wireless capability

• Yes, built-in WiFi 802.11b/g/n

Connectivity, standard

• Hi-Speed USB 2.0 port
• built-in Fast Ethernet 10/100Base-TX network port
• Wireless 802.11b/g/n

Network ready

• Standard (built-in Fast Ethernet, WiFi 802.11 b/g/n)

Minimum system requirements

• Windows 8 (32/64-bit), Windows 7 (32/64-bit), Windows Vista (32/64-bit), Windows XP 32-bit (SP2 or higher)
• Minimum hard disk space required (CD and Web Package) 200 MB
• Minimum hard disk space required 400 MB
• Minimum RAM installed 512MB CD-ROM/DVD or internet, USB or Network port

• Mac OSX v 10.6
• PowerPC G4, G5, or Intel® Core™ Processor
• 500 MB available hard disk space
• CD-ROM/DVD-ROM or Internet
• USB or Network port

Compatible operating systems

Full software installs supported on: Windows 10 (32-bit/64-bit), Windows 8 (32-bit/64-bit), Windows 7 (32-bit/64-bit), Windows Vista (32-bit/64-bit), Windows XP (32-bit) (SP2 or higher)
Driver only installs supported on: Windows 2012
Windows Server 2008 (32-bit/64-bit), Windows Server 2008 R2 (x64) (SP1), Windows Server 2008 (Standard Edition), Windows Server 2008 (Enterprise Edition), Windows Server 2003 (32-bit/64-bit) (SP1 or higher), Windows XP (64-bit) (SP2 or higher)
Mac OS X v 10.6.8 or higher
Linux: Please check Linux on-line support: http://www.hplipopensource.com/hplip-web/install.html
(Driver only installs supported on: Windows 2012; Windows Server 2008 (32-bit/64-bit), Windows Server 2008 R2 (x64) (SP1), Windows Server 2008 (Standard Edition), Windows Server 2008 (Enterprise Edition), Windows Server 2003 (32-bit/64-bit) (SP1 or higher), Windows XP (64-bit) (SP2 or higher))

Paper handling input, standard

• 150-sheet input tray

Paper handling output, standard

• 50-sheet face-down bin

Maximum output capacity (sheets)

• Up to 50 sheets

Duplex printing

• Manual (driver support provided)

Media sizes supported

• A4
• A5
• A6
• B5
• 16k
• 10 x 15 cm
• post cards (JIS single and double)
• envelopes (DL, C5, B5)

Media sizes, custom

• 76 x 127 to 216 x 356 mm

Media types

• Paper (bond, brochure, colored, glossy, letterhead, photo, plain, preprinted, prepunched, recycled, rough), postcards, transparencies, labels, envelopes

Media weight, supported

• Cut sheet paper: 60 to 120 g/m² (Stretch Goal:-163g/m²)
• Envelopes: 60 to 90 g/m²
• Post Cards: 135 to 176 g/m² (36 to 47 #)
• HP glossy media: 130 to 220 g/m²

Media weights, supported ADF

• 60 to 90 g/m²

Scanner specifications

Scanner type

• Flatbed, ADF

Scan file format

• Windows Scan Software supports file format: JPG, RAW (BMP), PDF, TIFF, PNG
• Mac Scan Software supports file format: TIFF, PNG, JPEG, JPEG-2000, PDF, PDF Searchable, RTF, TXT

Scan resolution, optical

• Up to 1200 dpi

Scan size, maximum

• 216 x 297 mm

Scan size (ADF), maximum

• 216 x 356 mm

Scan size ADF (minimum)

• 152 x 114 mm

Scan speed (normal, A4)

Up to 7.5 ipm (b&w), up to 5.5 ipm (color)
(Scan speeds of up to 7.5 ipm (b&w), up to 5.5 ipm (color) measured from ADF. The listed scan speeds are the rate at which the device operates, no matter what type of image is scanned. The resulting time to the scan appearing on the host will be a function of PC speed, network speed, and file size. The file size will be determined by the image content of the scanned target. Generally, the more image content, the larger the file size and a resulting increase in scanning time.)

Duplex ADF scanning

• No

Automatic document feeder capacity

• Standard, 35 sheets

Digital sending standard features

• Scan to E-mail by HP Software
• scan to application by HP Software
• scan to file by HP Software

File Format Supported

• PDF

• TIF
• BMP
• PNG
• JPG

Scan input modes

• Scanning via HP LaserJet scan application or TWAIN—or WIA-compliant application software

Copier specifications

Copy speed (normal)

Black: Up to 16 cpm
Color: Up to 4 cpm
(First Copy Out and Copy Speed measured using ISO/IEC 29183, excludes first set of test documents. For more information see hp.com/products1/ISO/digital_copy/index.html. Exact speed varies depending on the system configuration, software application, driver, and document complexity.)

Copy resolution (black text)

• Up to 300 x 300 dpi

Copy resolution (color text and graphics)

• Up to 300 x 300 dpi

Copy reduce / enlarge settings

• 25 to 400%

Copies, maximum

• Up to 99 copies

Fax specifications

Faxing

• Yes

Fax transmission speed

33.6 kbps
(Based on standard ITU-T test image #1 at standard resolution. More complicated pages or higher resolution will take longer and use more memory.)

Fax memory

• Up to 500 pages

Fax Resolution Black (best)

• Up to 300 x 300 dpi

Fax Speed Dials, Maximum Number

• Up to 100 numbers

Fax Broadcast Locations

• 100 locations

Power and operating requirements

Power

• Input voltage: 110 to 127 VAC (+/- 10%), 60 Hz (+/- 2 Hz)
• Input Voltage: 220 to 240 VAC (+/- 10%), 50/60 Hz (+/- 2 Hz) (Not dual voltage, power supply varies by part number with # Option code identifier).

Power consumption

290 watts (Printing), 200 watts (Copying), 9.2 watts (Ready), 1.3 watts (Sleep/Auto-Off), 0.2 watts (Manual Off)

Energy efficiency

• ENERGY STAR® qualified

Operating temperature range

• 15 to 30ºC

Operating humidity range

• 30 to 70% RH

Acoustic power emissions (ready)

Inaudible
(Acoustic values are subject to change. For current information see hp.com/support. Configuration tested: Color LaserJet Pro MFP M177fw, simplex printing with A4 paper. Color LaserJet Pro MFP M177fw, ADF copy and print simplex using A4 paper.)

Acoustic pressure emissions bystander (active, printing)

49 dB(A)
(Acoustic values are subject to change. For current information see hp.com/support. Configuration tested: Color LaserJet Pro MFP M177fw, simplex printing with A4 paper. Color LaserJet Pro MFP M177fw, ADF copy and print simplex using A4 paper.)

Dimensions and weight

Minimum dimensions (W x D x H)

423 x 425 x 335 mm

Maximum dimensions (W x D x H)

423 x 484 x 335 mm

Weight

16 kg

Package weight

• 19.6 kg
